| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~1000℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel, Inconel600 |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

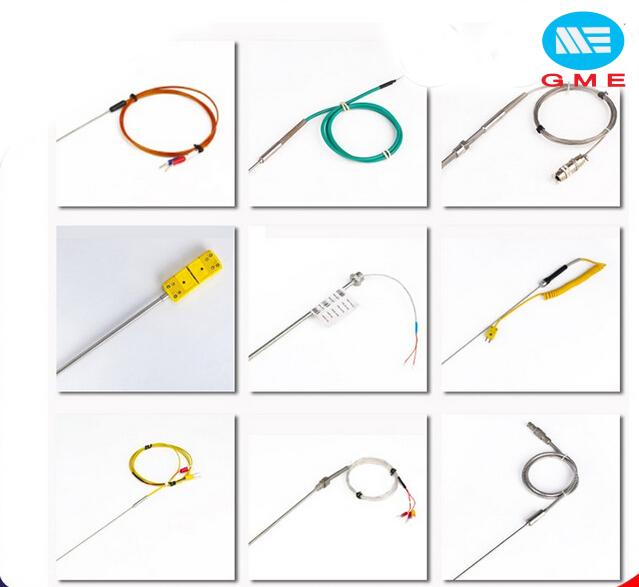

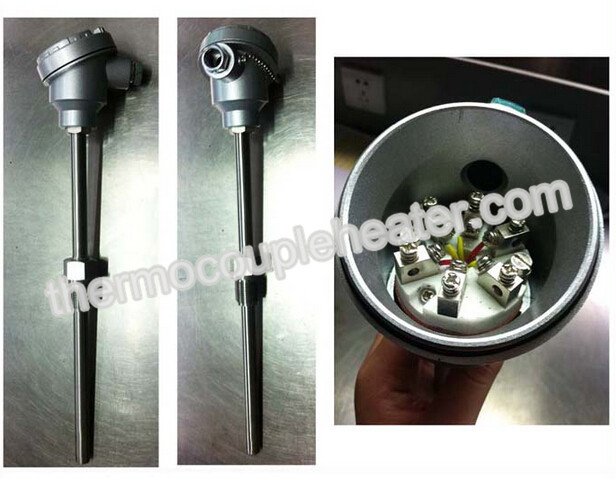

Industry Temperature Measurement Type K/R/S Probe Thermocouple
Description:
1) R-type thermocouple in the series, with the highest accuracy and stability of the best, wide-temperature-zone, long life, high temperature limit. Applicable to oxidation and inert atmosphere can also be used for short-term vacuum, but does not apply to restore an atmosphere of or containing metal or non-metallic vapor in the atmosphere.
2) k-type thermocouple is a clear advantage is not required for the purposes of compensation lead to compensate, as in 0 ~ 50 °C within the framework of thermal power less than3μV.
Specification:
Hydrothermal Reaction Time: 1-2s
Measurement Range: -50-427Celsius degree
Design Feature:
1. Coversion head: Thermoresistant resin
2. Lead: Kapton insulated extension wire
Application: It is mainly used to the temperature measurement of superfine precision and plastic mould of hot flow path system.

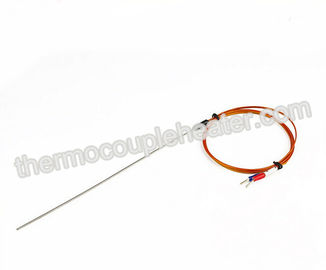

fiberglass wire thermocouple high temperature probe descriptions:
| type | K |
| temperature range | 0-1000C |
| probe diameter | 6mm |
| probe length | 150mm |
| probe material | SS304 |
| wire length | 1000mm |
| wire material | fiberglass |
| wire coat | PTFE |
| coat function | water-proof, acid-proof.... |
Application:
Plastic injection molding machinery;
Food processing equipment;
Engine and turbine exhaust gas;
Semiconductor processing;
Heating treating and metals processing;
Medical equipment;
Aerospace industries;
Packaging equipment;
Test standards.
