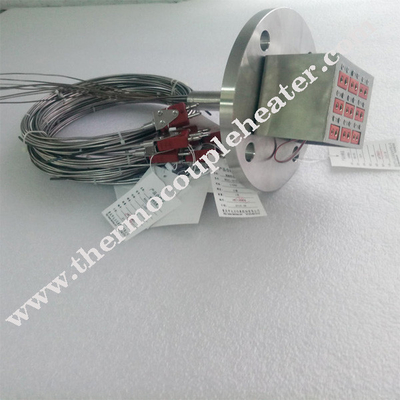

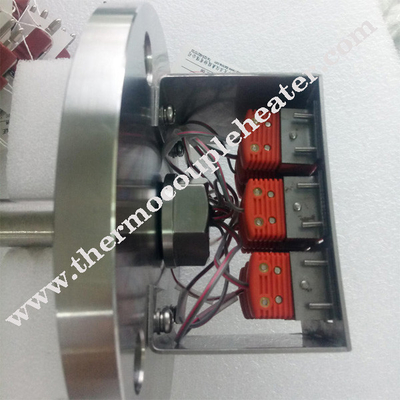

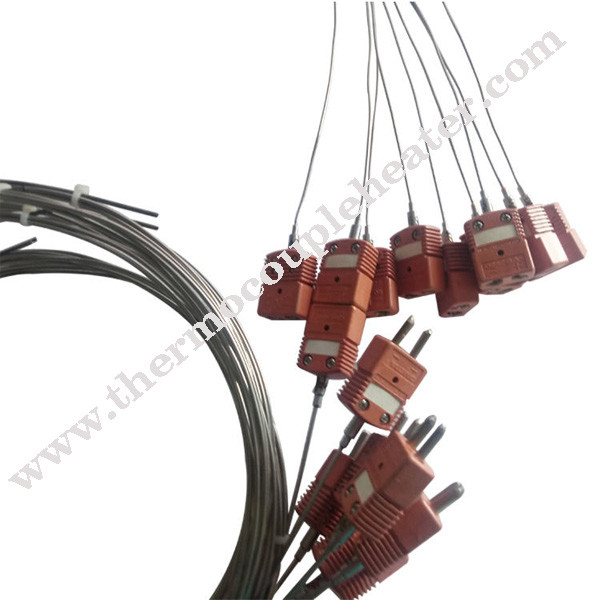

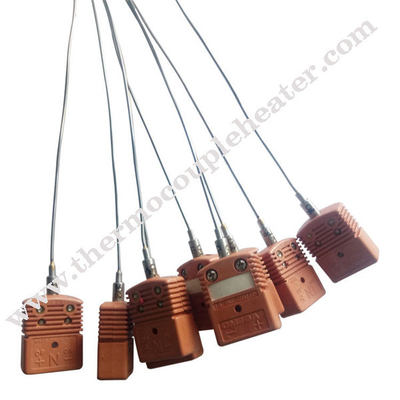

Multipoint Temperature Sensor N type thermocouple with Marlin connectors
Description:
Measuring points 2 to 16 points, suitable for installation in the reactor, pipelines, narrow bending. Used for chemical reaction tank, such as catalytic cracking furnace distillation fractionating column measuring the temperature of the different depth or location. And temperature measurement of high precision, long service life, safe and reliable. Its characteristics are as follows: 1 whole multipoint armoured
Thermocouple sensor stem only 6 to 10 mm in diameter. The built-in 2-16 points 2 dividing types:, K, N, E J, temperature measuring range - 40-800 degrees. The biggest insert depth. 30 meters 3 can match 644 h type intelligent temperature transmitter or 244 eh programmable temperature transducer connecting flange type 316 ti 4 process? Material armoring coat is made of 316L 5 monolithic multipoint armoured thermocouple. Only need a process interface, can read up to 16 points.
Specification:
(Anti-corrosion)
| Name | Type | Temperature range℃ | Allowable deviation t℃ |
| Nickel chrome - nickel silicon thermocouple | K | 0~600 | ±2.5 or 0.75%t |
| Nickel chrome - constantan thermocouple | E | 0~400 | |
| Platinum resistance | Pt100 | -200~+500 | A or B class |
| Copper resistance | Cu50 | -50~+100 | ±(0.3+6X10-3t) |
(Wear-resisting)
| Name | Type | Temperature range℃ | Allowable deviation t℃ |
| Nickel chrome - nickel silicon thermocouple | K | 0~1200 | ±2.5or 0.75%t |
| Nickel chrome - constantan thermocouple | E | ||
| Platinum resistance | Pt100 | -200~+500 | A or B class |
| Copper resistance | Cu50 | -50~+100 |
±(0.3+6X10-3t) |
