Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | High Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

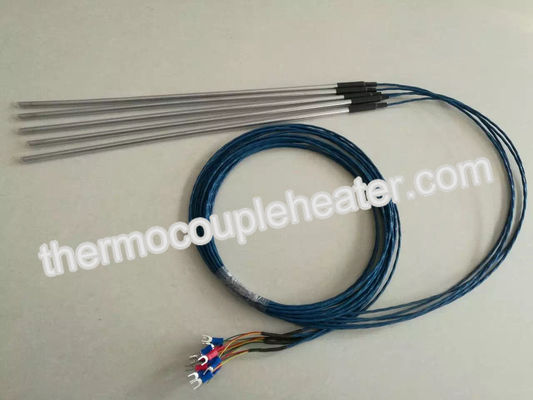

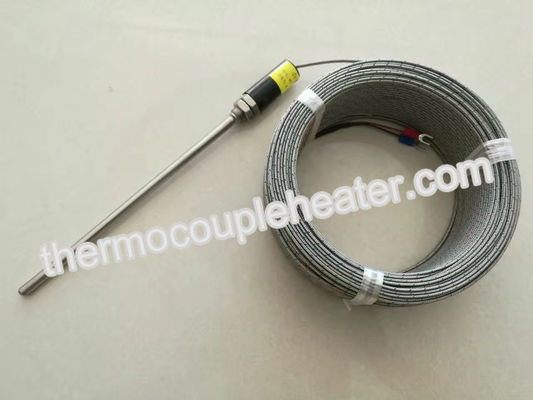

High Temperature controller sensor thermocouple RTD PT 100 with single thread
Description:
1) Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
2)A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Specification:
Accuracy: Class B. +/-0.30C at 0.0 C.
Alpha: 0.00385.
Probe diameter 5 mm.
Probe length, 2 " (50 mm) from the tip to the back end of the thread.
Maximum temperature, 300C.
| Ref No. | WR | Temp |
| Thermal element materials | B: PtRh30-Pt6 | 0~1600C |
| Ref No. | WZP | Temp |
PT100 | -200~+650C | |
| Pairs quantity of sensor wire | Simplex | |
| Ways of Mounting & Fixing | 1: without fixing device | |
| Types of connections box | 2: anti-spray (Protection class: IP65) | |
| Types of sensor end | G: variable section | |
Application:
1.Greenhouse
2.Cold chain logistics and warehouse
3.Food processing equipment
4.Medical equipment
5.Semiconductor process
6.Aerospace industries
7.Heat treating and metals processing
