Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Application: | High Temperature | Material: | Stainless Steel 304 |
|---|---|---|---|
| Accuracy: | Class1 | Usage: | Industrial |
| Type: | Thermocouple | TYPEWire Material: | Fiberglass Shielding Wire |
| Probe Length: | 100mm | ||
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||

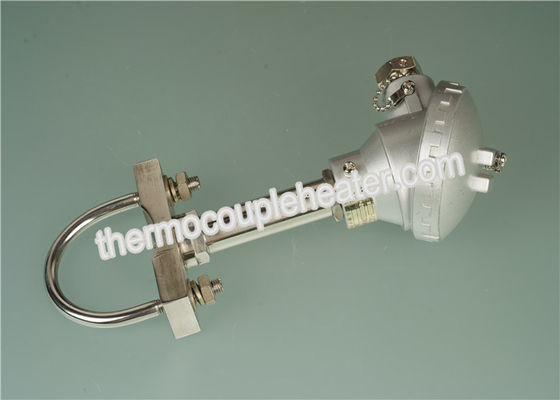

Type J K High temperature thermocouple with fitting for power station
1. Power plant thermocouple and rtd sensor:
It is specially designed for power station to measure temperature for 30KW,60KW power-generating set and concerned equipments .It is used to directly measure the temperature of liquid, vapor, gas and solid surface ranging from -200°C to 800°C during production process.
2. Thermocouple Measuring Range & Tolerance
|
Type |
Graduation |
Tolerance Class | |||
| l | ll | ||||
| Tolerance Value | Measuring range°C | Tolerance Value | Measuring range °C | ||
| WRN | K | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
| ±0.004ltl | 375~1000 | ±0.0075ltl | 333~1200 | ||
| WRE | E | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
| ±0.004ltl | 375~800 | ±0.0075ltl | 333~900 | ||
3. RTD Thermal resistance
| Type | Graduation | Measuring range°C | Accuracy Class | Tolerance |
| WZP | Pt100 | -200~+500 |
Class A Class B |
±(0.15+0.002ltl) ±(0.30+0.005ltl) |
| WZC |
Cu50 Cu100 |
-50~+100 | ________ |
±(0.30+0.005ltl) |
Packaging & Delivery
Packaging Details: standard export carton
Delivery Detail: seven working days for 100 pieces
