Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Model Number: | FB+FB+SS |
| Minimum Order Quantity: | 500 meters |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-15 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 1,000,000 meters per month |
| Type: | J/K/N/T/E/S/RTD | Insulation Material: | Fiberglass |
|---|---|---|---|
| Jacket Material: | Fiberglass | Shielding: | Steel Mesh |
| Dimension: | 12-32AWG, Customized | Temperature Range: | Up To 400℃ |
| Color: | DIN Standard, Or Customized | Application: | Connecting Thermocouple And Instrument Machine |
| Highlight: | Fiberglass Insulated Thermocouple Cable,500M Thermocouple Cable,Stainless Steel Thermocouple Cable |
||

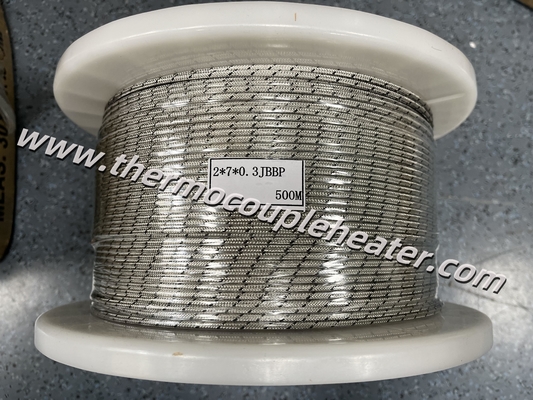

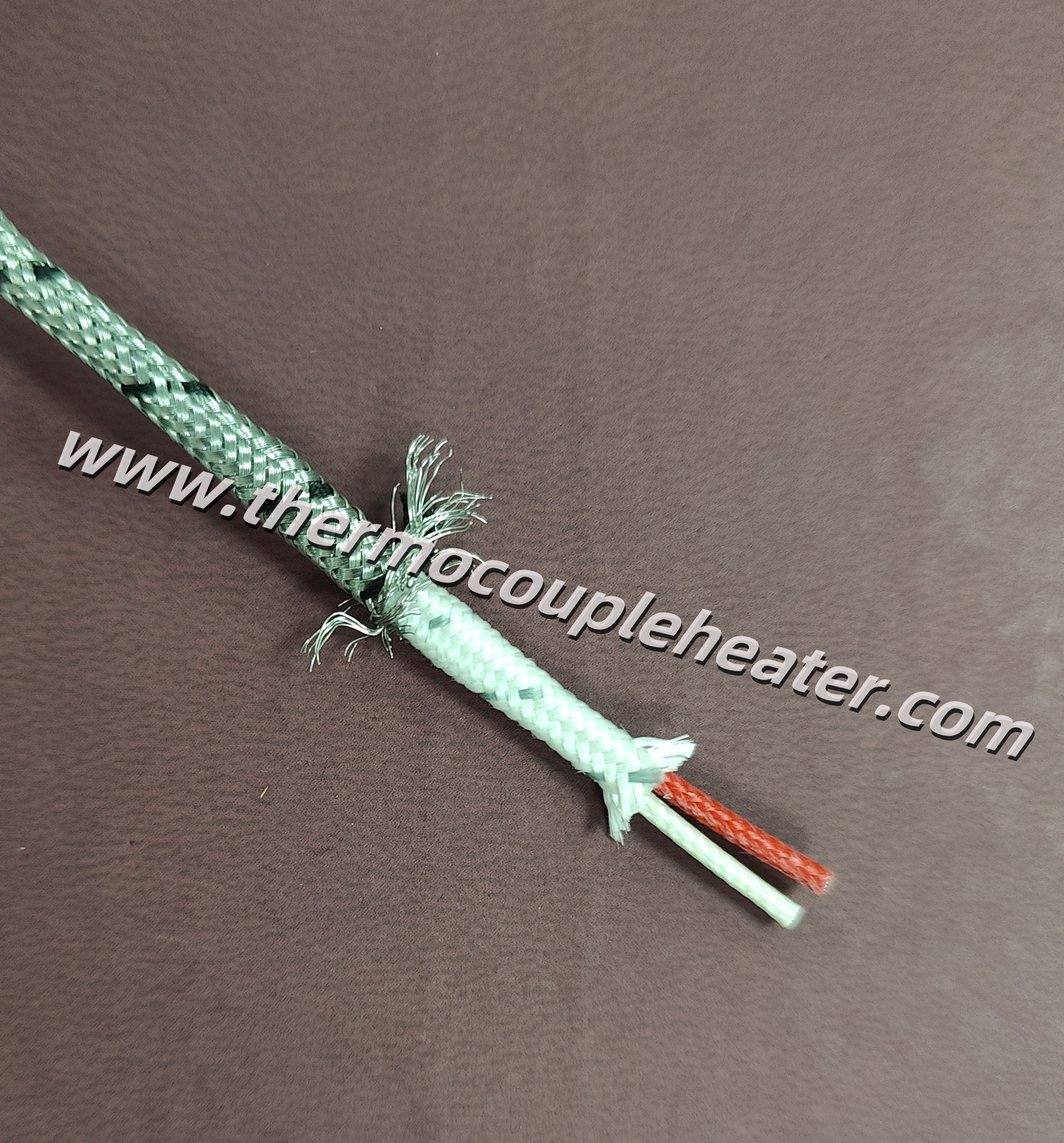

Thermocouple Cable With Double Fiberglass Insulation And Stainless Steel Shield
1. Brief Introduction
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple's reference junction.
2. Insulation Material
Commonly there are four types of insulation material for extension cable:
- Fiberglass
- PVC
- Silicone
- Quartz fiber
- Kapton
Stainless steel braided and tinned brass braided are also commonly used in the cable.
3. Color Style
Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
4. Order Code Example
When asking for quotations, customers are required to provide order specifications, including
- Type
- Conductor Size
- Constructure
- Color Code
- Order Quantity
