Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 500 meters |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-15 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 1,000,000 meters per month |
| Type: | J | Insulation Material: | PTFE |
|---|---|---|---|
| Conductor: | 40AWG, 0.08mm | Temperature Range: | Up To 200℃ |

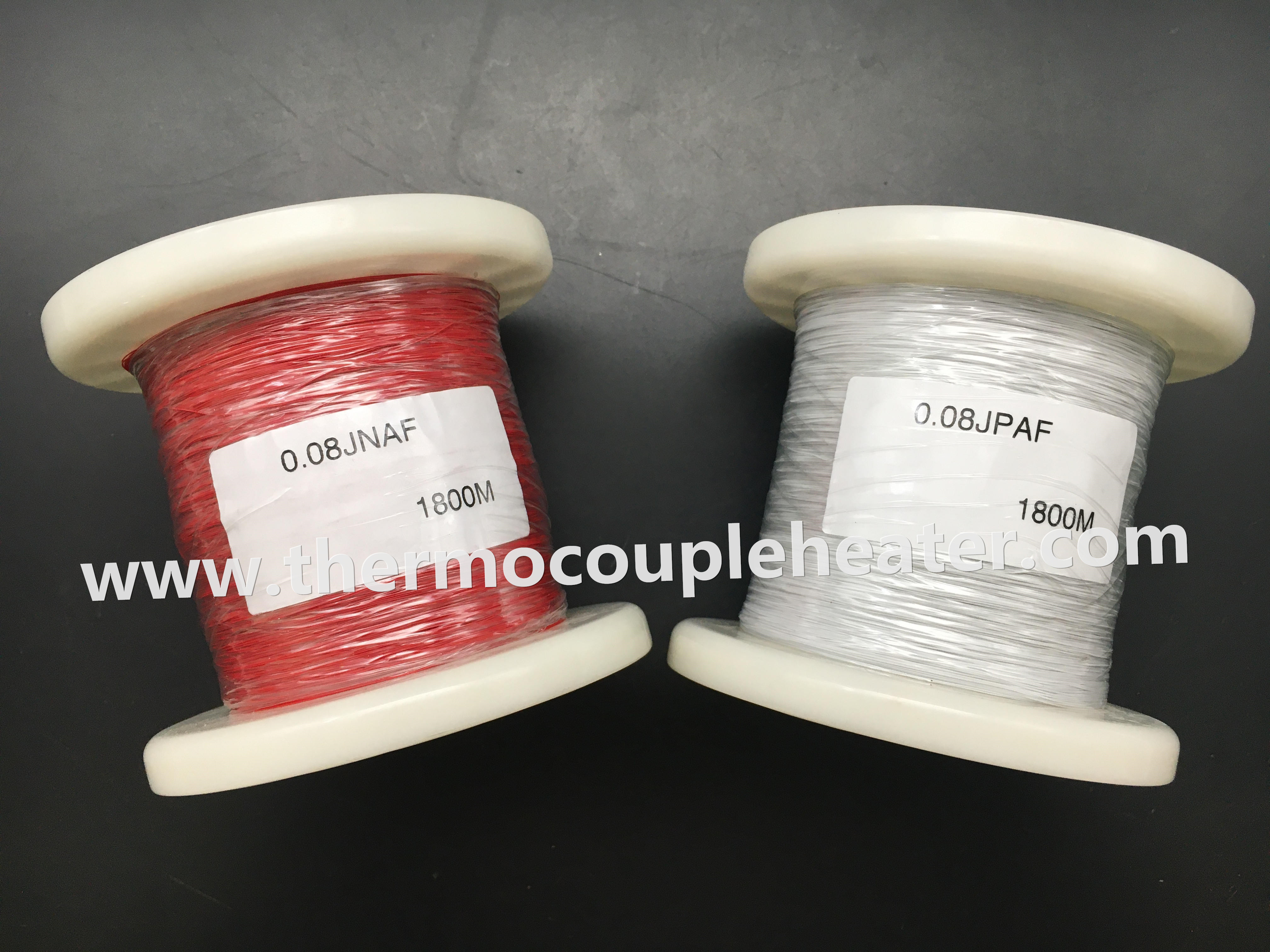

| Package: | Positive And Negative Legs Separately | Application: | Connecting Thermocouple And Instrument Machine |
| Highlight: | Customized Thermocouple Cable,0.08mm Thermocouple Cable,PTFE Coating Thermocouple Cable |
||

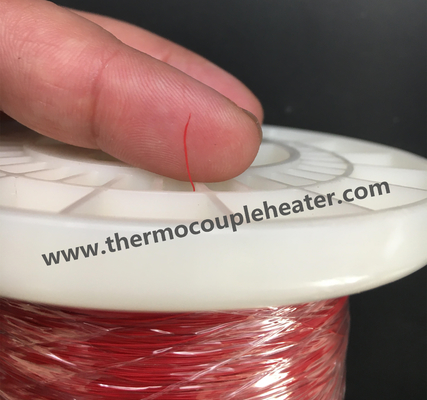

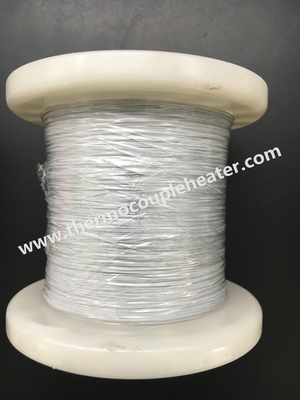

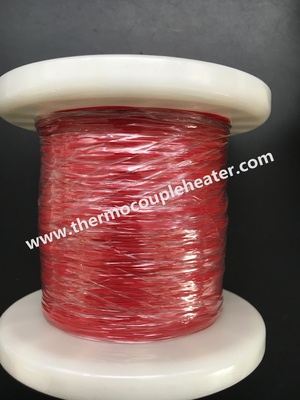

Customized Thermocouple Cable J 40AWG 0.08mm With PTFE Coating
1. Brief Introduction
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple's reference junction.
2. Insulation Material
Commonly there are four types of insulation material for extension cable:
- Fiberglass
- PVC
- Silicone
- Quartz fiber
- Kapton
Stainless steel braided and tinned brass braided are also commonly used in the cable.
3. Color Style
Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
4. Order Code Example
When asking for quotations, customers are required to provide order specifications, including
- Type
- Conductor Size
- Constructure
- Color Code
- Order Quantity
