Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs |
| Type: | PT100, PT1000 | Temperature Range: | -50℃ ~ 450℃ |
|---|---|---|---|
| Probe: | Mineral Insulated | Protective Tube Material: | Stainless Steel |
| Head Material: | Aluminum, SS Steel, Bakelite, Customized | Wiring: | 2-wiring, 3-wiring, 4-wiring, 6-wiring, Customized |
| Highlight: | Inserted Temperature Sensor RTD PT100,Waterproof Head Temperature Sensor RTD PT100,Inserted RTD Thermocouple |
||

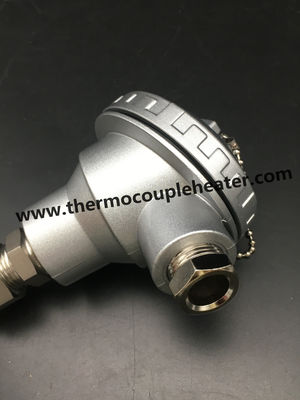

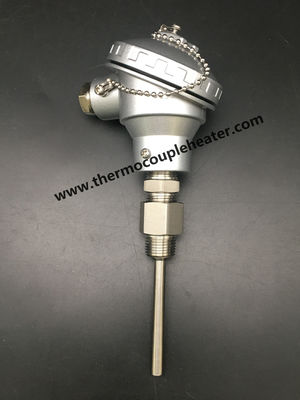

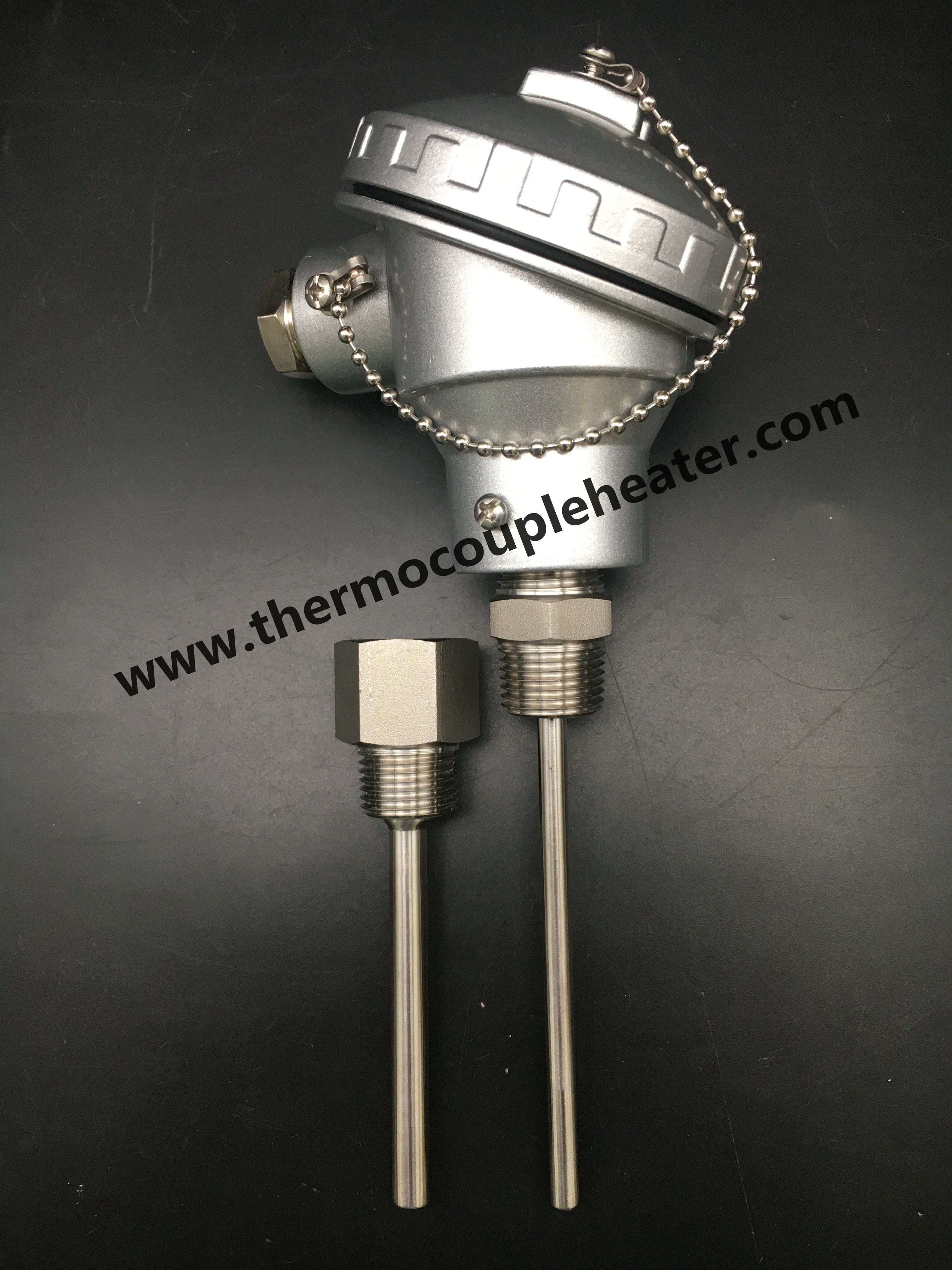

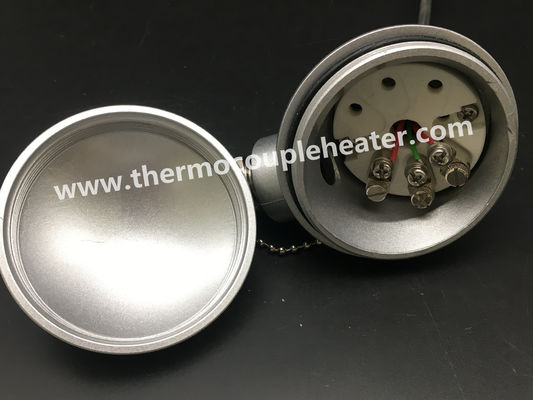

Inserted Temperature Sensor RTD Pt100 With Waterproof Head And Protective Tube
Product Features:
♦ Easy to install, several optional testing range
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Quick response, high accuracy
♦ Good long-term stability, low energy consumption,smart
Applicable Scope
♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
Technical Index
| Sensor | Pt100 Pt1000 |
| Resistance | 1×Pt100 1xPT1000 |
| Signal line specification | 2-wiring, 3-wiring, 4-wiring, 6-wiring, customized |
| Accuracy | Class 1, Class 2 |
| Testing range(°C) | -50~450℃ |
| Probe diameter | Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm, customized |
| Response Time | T=50°C 2.3s;T=90°C 5.4s |
| Ambient Temperature | -40~+85°C |
| Storage Temperature | -40~+125°C |
| Environmental Protection | IP65 |
