Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Minimum Order Quantity: | Quantity: 10 pcs |
|---|---|
| Packaging Details: | packing for export |
| Delivery Time: | 10,000 pcs per month |
| Payment Terms: | L/C, T/T, Western Union |
| Dimension: | Custom Size | Power(W): | 1w-10000w |
|---|---|---|---|
| Resistance Wire: | Ni Cr 80-20 | Insulation: | > 5 M W |
| Sheath Material: | Stainless Steel | Maximum Sheath Temperature: | 700°C |
| Highlight: | electric resistance heater,Electric Coil Heaters |
||

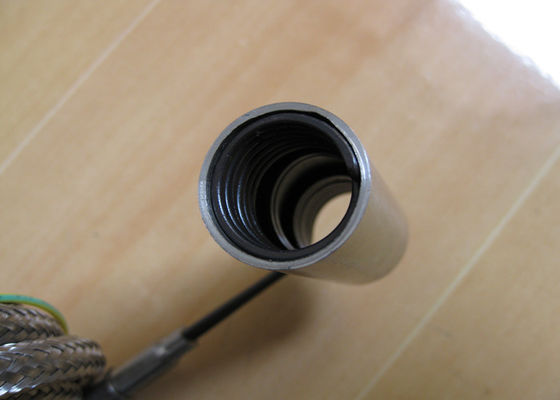

CE certified 230V hot runner coil heaters
Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Available in following cross section:
3.0 x 3.0, 3.3 x 3.30 3.5 x 3.5, 4 x 4, 4.2 x 2.2, 4.2 x 2.5 etc.
Any other cross sections can be manufactures and supplied on request.

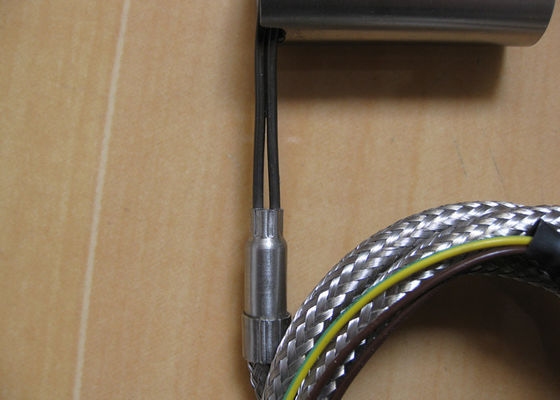

Features of Electric Coil Heater With Stainless Steel Braided Leadwire
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.
TECHNICAL SPECIFICATION AND TOLERANCE:
| Sheath Material | Cr Ni-Steel |
| Insulation Material | MgO |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
APPLICATION:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings.
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
