Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000pcs/month |
| Material: | Magnesium Sacrificial Anode,Marine Zinc Anode,Mg Sacrificial Anode | Dimensions: | ASTM B843-M1C ASTM B843-AZ63B |
|---|---|---|---|
| Chemical Composition: | Magnesium Anode ASTM B843-M1C | Standard: | ASTM-97 |
| Certificate: | ISO9001:2008 | Brand: | GME |
| Highlight: | sacrificial anode rod,Magnesium Alloy Sacrificial Anode |
||
| Brand Name: | GME | Material: | Magnesium Sacrificial Anode,Marine Zinc Anode,Mg Sacrificial Anode | Dimensions: | ASTM B843-M1C ASTM B843-AZ63B |
| Chemical Composition: | Magnesium anode ASTM B843-M1C |
| Anode Model # | Wire Type | Wire Length (m) | Magnesium Ingot Weight | Packaged Dimensions (heavy woven cloth, plastic bag, or cardboard tube) | |
|
ANM05.01 |
RWU90 10/7 | 3 | 5 lbs | 5 X 14 | |
|
ANM09.01 |
RWU90 10/7 | 3 | 9 lbs | 5 X 19 | |
|
ANM17.01 |
RWU90 10/7 | 3 | 17 lbs | 6 X 30 | |
|
ANM32.05 |
RWU90 10/7 | 3 | 32 lbs | 8 X 28 | |
|
Magnesium Anodes listed above are our most common specifications. Our anodes are available in many sizes to meet your exact requirements. If you have a specific design specification please call us and we will do our best to facilitate your request. |
|||||
We have devoted in sacrificial anode for 20 years, including Magnesium ingot, granule, anode, alloy, etc. We could supply you almost any size of Magnesium Anode you needed at better prices and good quality. We also passed ISO9001:2008 Certificate. As follows please kindly check our parcial proucts prices as follows for your reference.

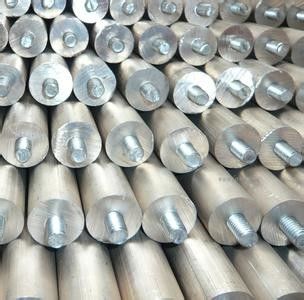

1. Commodity: Casting Magnesium Anode
2. Standard: ASTM-97
GB/T 17731-2004 Magnesium sacrificial anode
SY/T 0019-97 Buried steel pipeline sacrificial anode catholic protection standard
3. Packing: Extrude rod mg anode is in wooden case, cast mg anode on wooden pallet wrapped with plastic tandard exported package , suit for long time sea transport
4. Advantages and usages:
Magnesium anode is used in the technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy, protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial materials.
Magnesium anode is used in ship equipment and building, port construction, sea project, underneath pipeline, petroleum chemical fields.
Extruded magnesium anode is mainly used in water boiler, heat exchanger, evaporimeter, and boiler and so on. It has properties of softing water, de-dirt residual ,en-longing the working life of container.
5. Electrochemical properties of cast magnesium anode
| Product item | open-circuit voltage | open-circuit voltage | acuter capacitance | Current efficiency | |
| (-v) | (-v) | (A.H/G) | (%) | ||
| Mg anode with low potentialAZ63 |
1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 | |
| Mg anode with high potential Mg-Mn |
1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 | |
6. Electrochemical properties of extrude magnesium rod anode
| Product item | open-circuit voltage | open-circuit voltage | acuter capacitance | Current efficiency | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| (-v) | (-v) | (A.H/G) | (%) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
mg anode with low potential AZ31 |
1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mg anode with high potential Mg-Mn |
1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
7) Magnesium Anode Dimensions Specificantion of “S”shaped Mg sacrificed anodes
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | Weight Kg(Lb) | Specification of anodes Inch(mm) | |||
| A | B | C | |||
| 9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) | |
| 14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) | |
| 20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) | |
| 9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) | |
| 17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) | |
| 32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) | |
| 48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) | |
| 1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) | |
| 2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) | |
| Type | Diameter (mm) | High Potential L(mm) |
AZ63 Anode L(mm) |
Weight (Kg) | |
| C25 | 75 | 336 | 325 | 2.56 | |
| C36 | 114 | 202 | 193 | 3.7 | |
| C41 | 114 | 230 | 220 | 4.2 | |
| C77 | 11 | 431 | 412 | 7.8 | |
| C100 | 11 | 560 | 536 | 10.2 | |
| C145 | 146 | 494 | 472 | 14.7 | |
| C227 | 178 | 520 | 497 | 22.9 | |
| C274 | 114 | 1528 | 1462 | 28 |
The length can be changed according to clients’ requirements.
| Selling Units: | Single item |
| Single package size: | 200X200X200 cm |
| Single gross weight: | 1050.0 KG |
| Package Type: | magnesium anode on pallet with steel bundles or in wooden case |
