Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Model Number: | 16A |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Usage: | Industrial | Theory: | Temperature Controller |
|---|---|---|---|
| Accuracy: | ±0.25% | Temperature Range: | 0℃-500℃(32℉~932℉) |
| Control Output: | PWM Or SSR | Output Type: | Zero Cross / Phase Angle |
| Highlight: | thermostat temperature controller,multi-zone temperature controller |
||

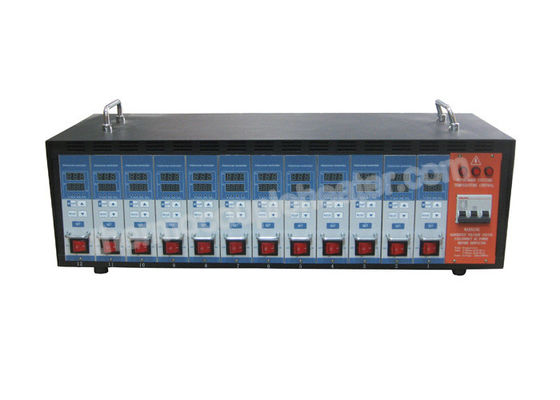

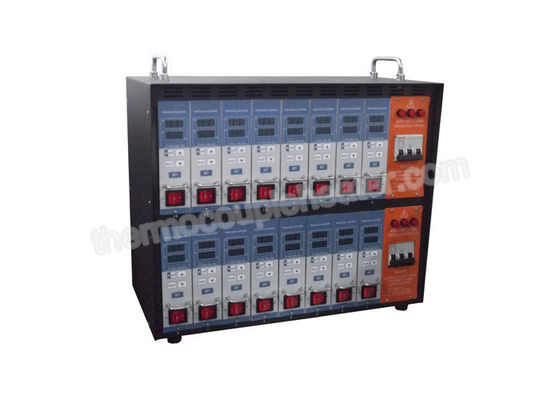

Auto Tuning hot runner controller , Multi zone Temperature Controller for Plastic Injection Machine
Characteristic
Short circuit, open circuit and system failure dual protection；
Segmentation heating and soft-start function
Pattern recognition,Plug and Play
Automatic or manual heating can be selectable
Degree C or F selectable
Thermocouple Type J standard, Type K selectable
Automatically compensates for ambient temperature
Over Temperature automatic protection
Automatic identification of load power ,Remarkable energy saving Heater and thermocouple dislocation identify the alarm function
With current detection function
Specifications
Input Voltage:AC110V / 220V
Load current:15A～18A
Rated Power:3600W(Peak power:4200W)
Operating Range:0～450℃
Temperature resolution:0.1℃
Control Accuracy: 0.1℃
Steady state:±0.5℃(Load disturbance is not big in the case)
Calibration Accuracy:Full scale 0.22%
Sampling process:250 times/s
Maximum adjustment cycle:2 minutes and 45 seconds
Short-circuit protection Response time＜8 ms
Current consumption＜100 mA
Demension
| Type | 02A | 02B | 04A | 06A | 08A | 10A | 12A | 24A |
| Zone | 1 ~ 2 | 1 ~ 2 | 3 ~ 4 | 5 ~ 6 | 7 ~ 8 | 9 ~ 10 | 11 ~ 12 | 13 ~ 24 |
| Power Switch | 2P-40A×1 | None | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×2 |
| Power Supply | 1-Phase 3-wire AC220V | 1-Phase 3-wire AC220V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V |
| Output Connector | 16PIN×1 or Cable | 16PIN×1 or Cable | 16PIN×1 | 24PIN×1 | 16PIN×2 | 24PIN×2 | 24PIN×2 | 24PIN×4 |
| Dimension(mm) | L=185 H=200 D=290 | L=130 H=200 D=290 | L=310 H=210 D=290 | L=410 H=210 D=290 | L=510 H=210 D=290 | L=610 H=210 D=290 | L=710 H=210 D=290 | L=720 H=420 D=290 |
Protection Fuctions
1. Wide power supply range, AC85~415V
2. Thermocouple input protection, prevent module damaged by mis-connection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
4. Soft-start mode, avoid the humidity make the heater burn out
Diagnostic Function
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
Accessories
Cables: provide 16/24 core combination hot runner cable and mold power cable, thermocouple cable or customized
