Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Place Of Origin: | China | Type: | Electric Plug |
|---|---|---|---|
| Grounding: | Standard Grounding | Current: | 25 A-30A |
| Material: | Alumina Ceramic,aluminum | Application: | Industrial |
| Color: | White,black,brown,yellow Ect | Purpose: | Used In High Temperature |
| Degree: | 300 | Volt: | 220-600v |
| Highlight: | K Type Thermocouple Connector,K Type Thermocouple Socket,Thermocouple Connector 30A |
||

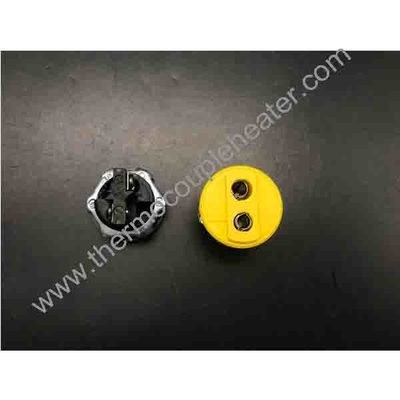

Hot Selling K Type Thermocouple Connector Thermocouple Socket
Description:

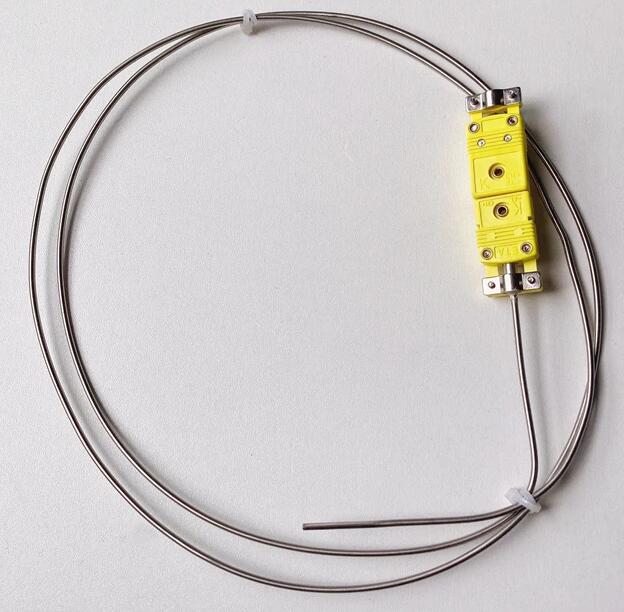

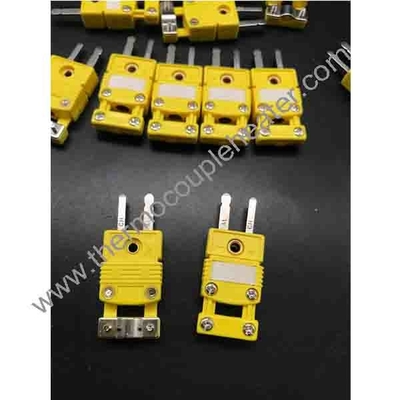

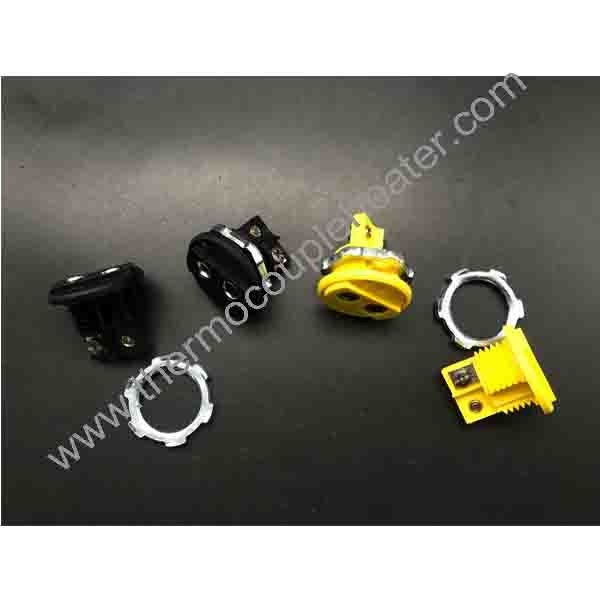

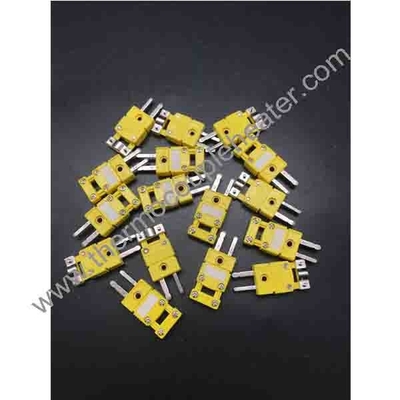

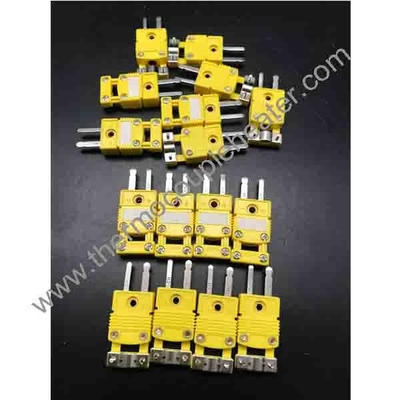

Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.
All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations:
| Type | Color | Conductor material |
| K | yellow(ANSI) or green(IEC) | NiCr-NiSi |
| N | orange | NiCrSi-NiSiMg |
| E | purple | NiCr-CuNi |
| J | black | Fe-CuNi |
| T | blue | Cu-CuNi |
| R/S | white or green | Cu-CuNi |
| PT100 | white or yellow | Cu/Ni |
1. Designed and manufactured under strict ISO9000:2000 DISCIPLINES
2. Full compliance to CENELEC specifications BS/EN 5020121996
3. ANSI, DIN & JIS colour coding available on request
4. High Quality Thermoplastic body
5. Easy wire connection through sandwich construction
6. Polarized terminals guarantee correct polarity
7. Molded barriers to prevent short circuit of conductors
8. High accuracy compensated connections
