| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-380v | Sheath Material: | Stainless Steel Or Nickel |
| Power: | 1w-10000w | Style: | Straight Or Coil |
| Material: | Ss304 Or Requirement | Length: | Up To Your Order |
| Highlight: | Blanket Silicone Rubber Heating Plate,Pad Silicone Rubber Heating Plate |
||
Specification:

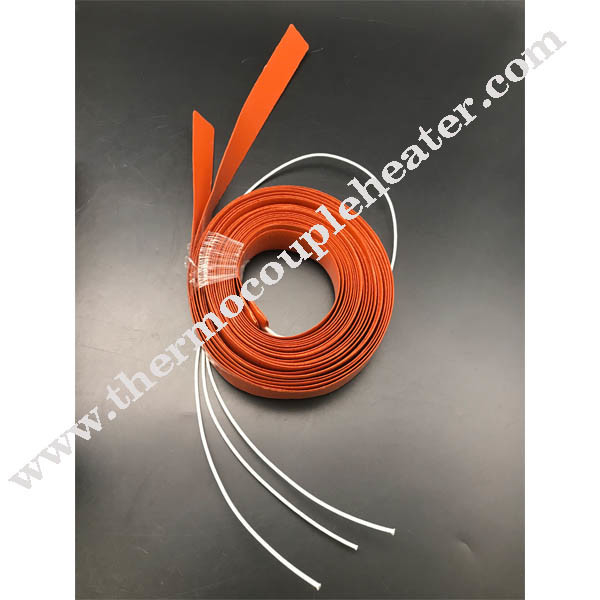

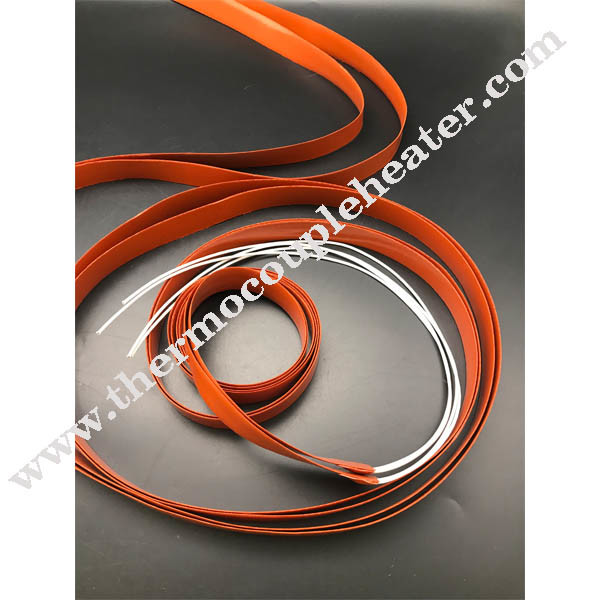

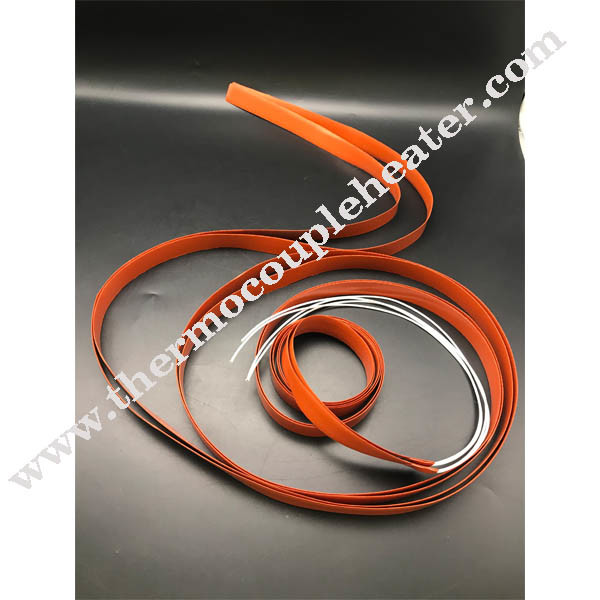

This product mainly consists of alloy eletric heating wires and silicon rubber high temperature insulating cloth,it generates heat rapidly with even temperature,high heat efficiency & good toughness,it conforms to American UL94-V0 grade flammability standard,it is easy to use,safe and water-proof.the aging life can be as long as 5 years.
Technical parameters:
1)The maximum temperature resistance of the insulating material:250℃
2)Highest service temperature:250℃-300℃
3)Insulating resistance:≥50MΩ
4)Compressive strength:1500v/5s
5)Power deviation rate:±5%
6)High Voltage resistance:>5KV
| Model | heater for drum(200L) | heater for pail can(20L) | heater for ltto can(200L) |
| Dimensions | 250×1740 | 200×860 | 125×1740 |
| Electrical data | 220V 2000W | 240V 800W | 220V 1000W |
| Temperature Range | 30-150°C EGO | 30-150°C EGO | 30-150°C EGO |
| Weight | appr 0.5kg | appr 0.4kg | appr 0.4kg |
Application:

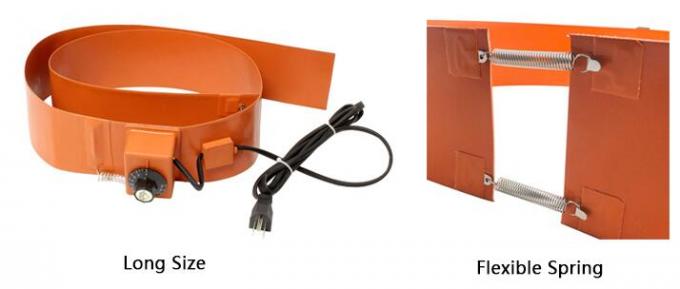

1.Oil / Honey Tank Drum Heater
2.Container or LBC heating blanket
3.Gas cylinder heaters
