Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Surface Finishing: | Bright Or Soft Annealed | Insulation Resistance: | > 5 MΩ |
| Highlight: | Thermocouple J Hot Runner Coil Heater,Stainless Steel Brass Coil Heater,Thermocouple J Electric Coil Heaters |
||

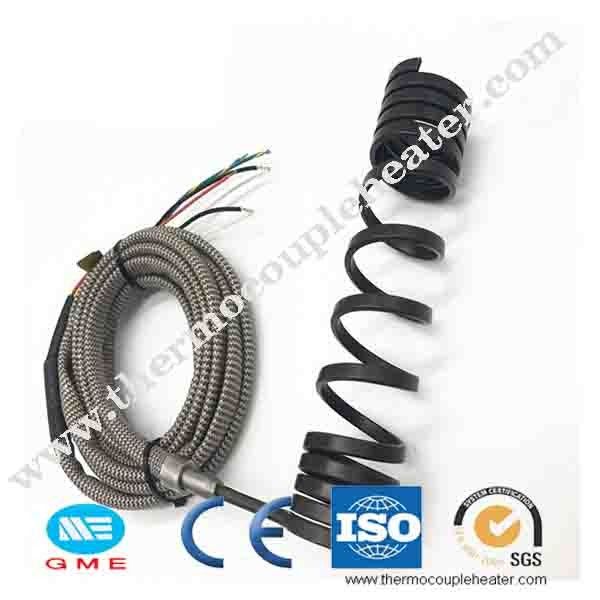

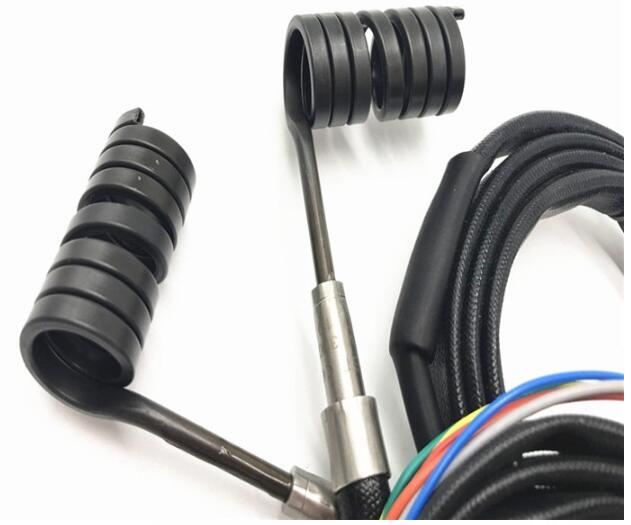

Stainless Steel Square Electric Brass Thermocouple J Hot Runner Coil Heaters
Description:
Spring Type Coil Heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.Spring coil heater is also known as high performance tubular heaters or cable heaters. Spring heater can be produced with or without built in thermocouples. Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields.
Length of hot runner heater within 20-3000mm is mainly used for hot runner mold or as well as other precision heating system.Spring heating ring external using high quality Ni-Cr steel tube,the internal use of high purity magnesium oxide,high temperature resistance wire,and fish-class manufacturing technology.The wire is after the annealed,with flexibility can be sent into an arc or circle heating.Its high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,while internal heating material damage,external can be reuses.
Application:
Plastic Die Applications;Blow Molding Machine;Extrusion;Hot Runner Systems;Injection Molding;Thermoforming
Feature
1. Spring ring heating specification:heating section:2.2×4.2 3×3 3.4×3.4 3.5×3.5 5.4×4mm
2. Heating coil ID 10mm-38mm.heating height of ring:40mm-200mm
3. Voltage:220V-380V,wattages:200W-3000W
4. Built-in thermocouple power:wuth or without J/K thermocouple,length of lead wire as 500mm 1000mm 1200mm 1500mm or 2000mm
5. Continuous Operating Temperatures to 1200ºF
Intermittent Operating Temperature to 1500ºF
6. Spring heating ring advantages:high working temperature,fast heating,long service life,convenient installation.
