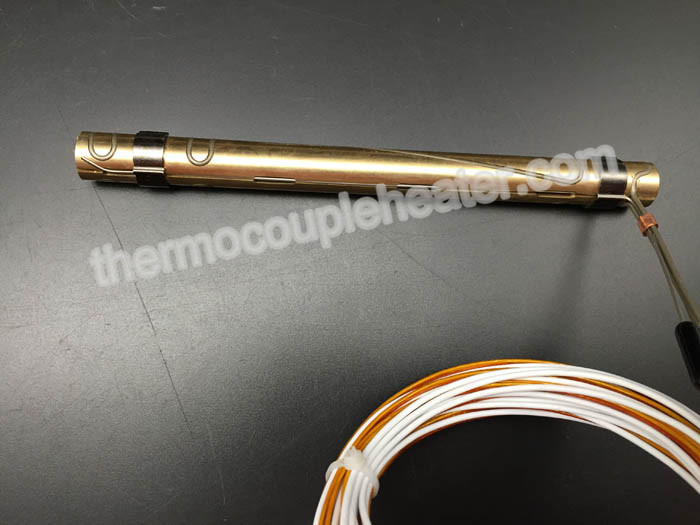

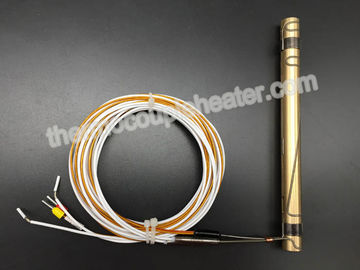

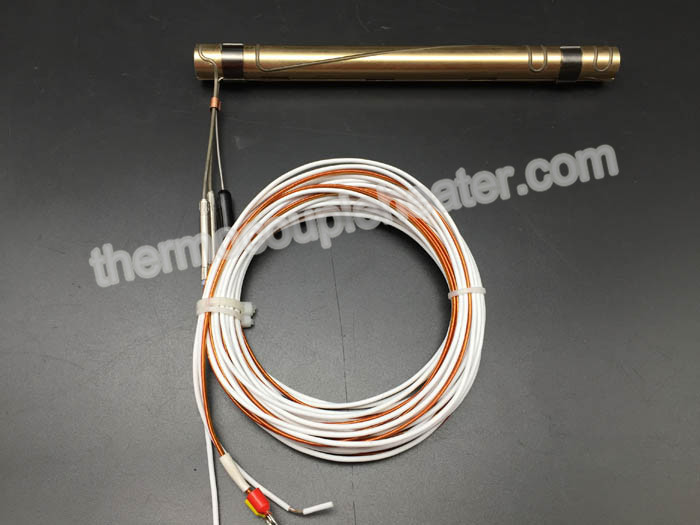

Diameter 10mm Press In Brass Nozzle Coil Heaters With Slot For Hot Runner System
1. Product Description
Pressed in Brass Coil Heaters from GME are mostly used in Nozzles for die Casting, heating nozzle, and bushings and in plastic industry as hot runner tool. Flexible design options include internal, external thermocouple type J or type K, and cross-section of the cast-in brass coil heaters could be made square or rectangular to improve heat transfer.
2. Characteristics
1) The inside insulated cover, same as the German GC.
2) Good performance of the heating uniformity in the heating area.
3)The moisture-proof is IP65.
4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
3. Parameter
| Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
| Voltage | 220V,230V,240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~280mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
| Thermocouple | K,J,E | None | ||||
| Material | 304,321,316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | 1000V | ||||
Hot runner system
Plastic industry
Packaging machinery
Medical equipment
Casting process
Other electric heating industry
