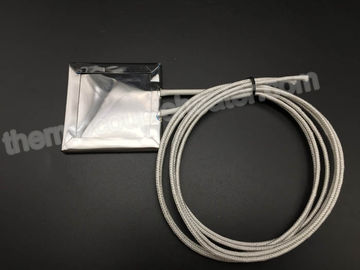

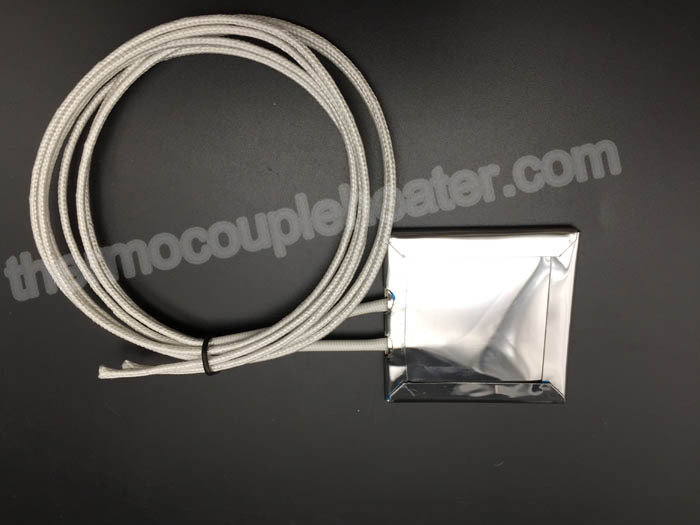

Stainless Steel Mica Strip Heater For Injection Molding / Plastic Process Equipment
1. Mica Strip Heater Brief Introduction
Mica Strip Heaters are constructed by winding a nickel-chrome resistance ribbon around mica insulation and encapsulated in a stainless steel sheath. They are available in an extensive variety of sizes and shapes with options for holes, notches and cut-outs. A number of threaded terminals, wire lead options and terminal boxes offer great flexibility for field wiring. With temperature capabilities of up to 900°F, these heaters are ideal for plastic processing applications and for anywhere heat is needed on a flat or curved surface.
2. Mica Strip Heater Technical Information.
Heater material :copper, SS304, cast aluminum, cast copper, ceramic
Insulation material :imported high-temperature mica
Wattage tolerance: +5%-10%
Resistance wire: Ni80Cr200
Electrical property: ≤0.5mA
Input voltage and wattage :to be customized as request
Specification :to be customized as request
3. Mica Strip Heater Features:
| mica heater | mica strip heater |
| sheath | 304 stainless steel |
| insulation | mica |
| resistance heating wire | nickel chrome wire |
| temperature | 500-600 degree celsius |
| wattage density | 3w per square centimetre |
| shape | customized demands available |
4. Mica Band Heater Application
Band heaters are commonly used in the plastics industry: to heat plasticization cylinders, extruders and injection presses. They are also employed on woodworking machinery and scientific-medical equipment.
Flat mica bands are used in the packing trade (sealing bars and wheels), industrial ironing (mangles) and plastics (extrusion/blower machines).
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications
