| Product Name: | 4.2x2.2mm Straight Coil Heaters With J Type Thermocouple And White Silicone Varnished Cable | Thermocouple: | Type J |
|---|---|---|---|
| Application: | Hot Runner Plastic Mold | Material: | Stainless Steel 304, 316 |
| Moisture Proof: | IP 65 | Insulated Material: | Comressed MgO |
| Warranty: | 1 Year | Lead Wire Length: | 1000 Mm Or Customized |
| Highlight: | electric resistance heater,coil heater with thermocouple,4.2x2.2mm Coil Heaters |
||

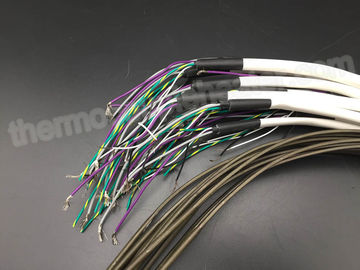

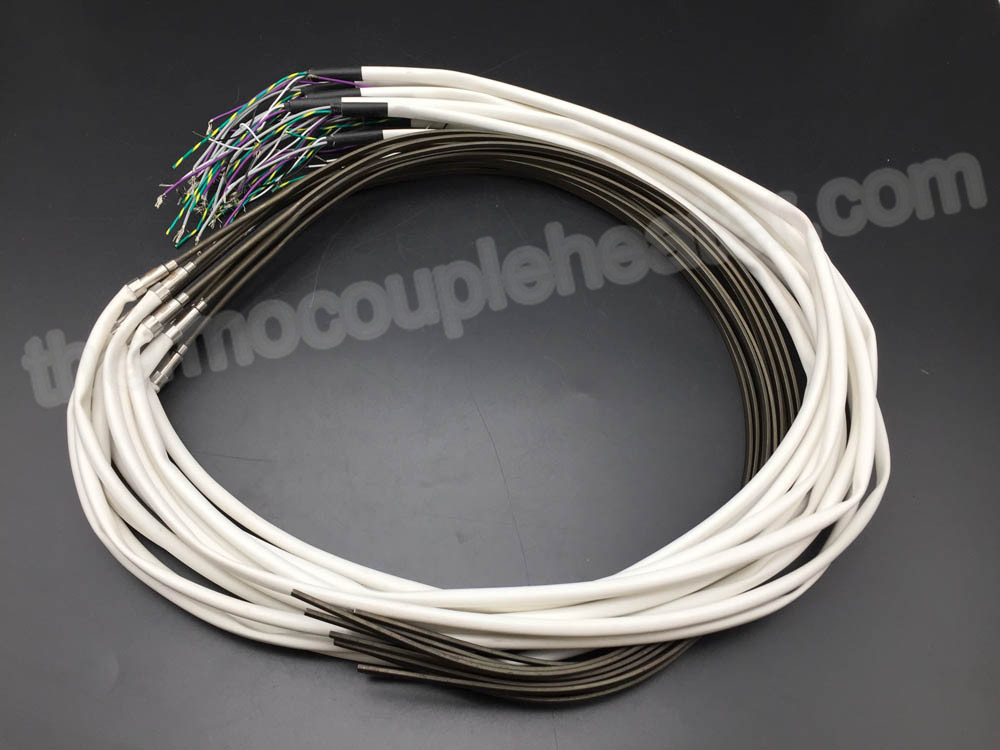

4.2x2.2mm Coil / Cable Heaters With J Type Thermocouple And White Silicone Varnished Cable
1. Coil Heater Brief Introduction
Coil/Cable heaters could be coiled, to form coil heaters that are ideal whenever a large amount of heat is required in a confined space. Coil heaters have many applications but are mostly utilized as powerful heating cells inside hot runner nozzles in plastic injection molding.
Coil/Cable heaters are high performance mini tubular heaters that have small rectangular, square or round cross sections that are flexible and can acquire different shapes and configurations.
Coil/Cable heaters can accommodate "J" type or "K" type thermocouple sensors that could be placed internally at the tip or the middle of a heater. They can be made as well to have profiled or distributed wattage configuration.
The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Cable heaters can transmit up to 35 W/in2 heating capacity and can attain up to 15000F surface temperature.
2. Coil Heater Characteristics
3. Coil Heater Parameter.
|
Spring coil heater (H series) |
3.0x3.0 |
Φ3.0 |
Φ4.0 |
Φ5.0 |
3.5x3.5 |
5.0x5.0 |
|
Voltage |
220V,230V,240V |
|||||
|
Power tolerance 115W-200W |
+/-10% |
|||||
|
Power tolerance 201W-2000W |
+5%-10% |
|||||
|
Out jacket length |
30mm~280mm |
|||||
|
Diameter of the inner sleeve/wrapped diameter |
10mm~42mm |
|||||
|
Unheating length |
45mm |
|||||
|
Max power density |
9W/cm² |
|||||
|
Heating Length tolerance |
+/-0.05mm |
|||||
|
Unheating length tolerance |
+/-2.5% |
|||||
|
Tolerance ID d ≤20mm |
Without inner sleeve:-0.15mm |
|||||
|
Tolerance ID d 20mm~30mm |
Without inner sleeve:-0.20mm |
|||||
|
Tolerance ID d ≥30mm |
Without inner sleeve:-0.25mm |
|||||
|
Tolerance cross section |
+/-0.15mm |
+/-0.20mm |
||||
|
Thermocouple |
K,J,E |
None |
||||
|
Material |
304,321,316 |
|||||
|
Maximum working temperature |
650℃ |
|||||
|
Die electrical strength |
800V |
1000V |
||||
4. Spring Coil Heater Application
This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical
equipment, casting process,other electric heating industry, etc..
